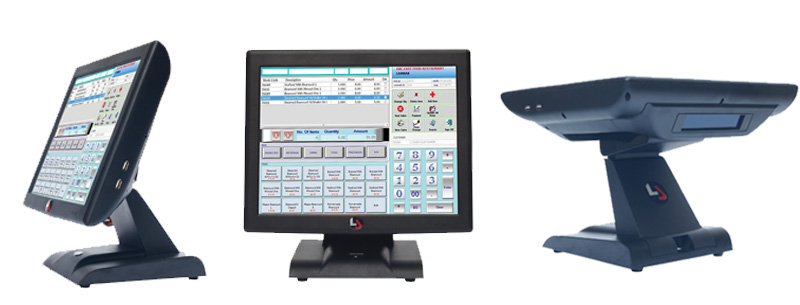

  • Industrial Touch POS System

    Model Number:
    LS-1508H
    Product Description:

    slim & Compact Design

    Equipped with Intel 1037U processor

    Mini ITX Main Board with 02 DDR3 RAM Up gradable upto 08gb

    320 GB Hard disk

    5 wire Resistive 15 Touch Monitor with Resolution 1024 * 1072

    Integrated 2*20 LED Customer Display

    06 USB Port,serial port,Parallel Port & ps2 port



    APPLICATION OF THIS DEVICE:

    Model LS 1508H  POS System can be used in small, medium retail and restaurant industries.  LS POS Systems' manufacturer Logon Systems Pvt Ltd.  will always keep an eye on the market and analysis what it takes to compete and provide a real-time solutions for retail billings made easy? Logon Systems Pvt Ltd manufactured this model hardware machine to mach the industry's demands, especially small and medium retail POS billing software industries adaptability. A time tested device, which can run any POS software to perform on with best ever experience of competency. Most of the POS distributors are replacing with LS brand in their sales possession to do more reliable business without much hazles. The performance and support of LS brand are emerging in the market in the recent time quite interestingly so we believe LS brand will make everyone happy.

    Product Specification:
    System Configuration
    Processor Intel 1037U / 1.8GHz / 2M Cache (dual core)
    System Memory SO DDR3 1333 / 1066MHz -DIMM, Max. 8GB
    Chipset Intel® NM70 Express Chipset
    Display graphics core integrated Intel® HD Graphics Provides VGA, HDMI, dual-channel 24-bit LVDS display output
    Storage Device 1 * MSATA slot supports SSD / WIFI, SSD transfer speeds of up to 6Gbps, Storage features 3 * SATAII hard disk interface, transfer rate up to 3Gbps , Factory default 320GB HDD
    Power Supply 12V / 60W
    OS support Windows XP / Windows 7 / WIN8 / Linux / POSReady 7 / POSReady 2009
    Display & Touch
    LCD Display 15" TFT LCD ( 326mm * 252 mm)
    LCD Resolution 1024 x 768
    Touch Function 5 Wire Resistive Touch
    Response Time 16 ms
    I/O & Expansion
    Serial Port 3 com ports
    Parallel Port 1
    Standard USB Port 6
    LAN Port 10 / 100 / 1000 Mb
    VGA Port 1 * VGA1 interface with DB15 same signal 2 * 5pin
    PS/2 Keyboard / Mouse yes
    Audio 1 * Audio I / O interface (microphone and line-out)
    Extension Slot 1 * Mini-PCIE slot supports WIFI / 3G module
    Built-in Device
    Built-in Poll display 2* 20 LCD Customer Display
    Built-in WIFI Optional mini-PCIe WIFI module
    Physical Dimension
    Dimension (W x D x H in mm) 335 x 210 x 340
    Weight (N. W. in kg) 7.5
    Environmental
    Operating Condition 0°C - 40°C, 20%RH - 90%RH (Equipped with HDD);0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
    Storage Condition -30°C - 70°C, 10%RH - 90%RH
